Complete Your Trailer Build
Duraride Axle Systems is a trusted provider of heavy-duty trailer undercarriage components, delivering proven solutions for heavy-duty trailer applications. Every product is engineered and assembled in the USA, ensuring reliability, performance, and long-term durability across diverse trailer types.
MEET DURARIDE — HEAVY DUTY THAT YOU CAN TRUST
Duraride delivers a complete line of trailer components—including axles, suspension kits, leaf springs, landing gear, turntables, hubs, and tire/wheel assemblies. Trusted by OEMs and distributors, each component is engineered to OEM specifications and rigorously tested. Flexible supply chain programs and tailored fulfillment options support reliable delivery and operational efficiency.
Contact Our Team
Duraride
Key Product Specifications
Duraride components are engineered for heavy-duty performance and long-term reliability. This overview highlights the core specifications for axles and leaf spring suspension systems, providing OEMs and distributors a clear view of the options built to meet demanding trailer applications.
Axle Configuration Options
| Capacity (lbs) | Beam Thickness (in) | Track Length (in) | Brake Size (in) | Brake Chambers | Lubrication | Bolt Pattern | Brake Drum | Hub |
|---|---|---|---|---|---|---|---|---|
| 22,500 | 0.50 (½) | 71.50” | 12.25×7.50 | 30/30 Spring Brake | Oil/30 Spring Brake | Hub Pilot | Cast Pilot | Standrad Ductile Iron |
| 25,000 | 0.625 (⅝) | 77.50” | 16.50×7.00 | Type 30 Service | Grease | Budd Mount (Stud Pilot) | Steel Liteweight | Steel Liteweight |
| 30,000 | 0.75 (¾) |
Leaf Spring Specifications
| Leaf Springs | Leafs & Arch | Capacity |
|---|---|---|
| 360-00, TRA-023 | Single Leaf, High Arch | 22,400 LBS |
| 363-00, TRA-021 | Single Leaf, Low Arch | 22,400 LBS |
| 324-01, TRA-2752 | 2 Leaf, High Arch | 22,400 LBS |
| 325-01, TRA-2753 | 2 Leaf, Medium Arch | 22,400 LBS |
| 326-01, TRA-2754 | 2 Leaf, Low Arch | 22,400 LBS |
| 354-00, TRA-2726 | 3 Leaf, High Arch | 22,400 LBS |
| 355-00, TRA-2727 | 3 Leaf, Medium Arch | 22,400 LBS |
| 356-00, TRA-2728 | 3 Leaf, Low Arch | 22,400 LBS |
| 365-00, TRA-2740 | 3 Leaf, High Arch, Heavy Duty | 25,000 LBS |
| 365-01, TRA-2741 | 3 Leaf, Low Arch, Heavy Duty | 25,000 LBS |
Testimonials
What Our Customers Say
Exceptional service and quality axles
“We have been using Duraride axles and springs for roughly 5 years now. Their team is responsive and quick to support when we need them. The product has been quality and on-time.”
– Agriculture Trailer Manufacturer – Western Region
Duraride has opened up a new market
“The availability and market pricing has been strong. We have been successful representing the Duraride brand in our territory – everything from dressed axles, springs, turntables, and mounted tire wheels.”
– Distributor – Northwest Region
Quality axles and on-time delivery
“We have been building trailers for 30+ years… Duraride was a new brand to our team. After testing the axles, we moved everything over to Duraride. We’re happy with the quality thus far. “
– Trailer Manufacturer – Central Region
Why Choose Duraride?
Duraride components are selected by leading manufacturers and distributors across the trailer industry for reliability, OEM compliance, and high-performance design.
OEM Approved
Designed and validated by industry veterans. Every axle, hub, suspension kit, and brake assembly is tested to meet or exceed OEM standards.
Custom Fulfillment Program
Reduced minimum order quantities, mixed container-direct programs, and U.S. domestic warehousing allow flexible fulfillment and just-in-time delivery.
Extensive Warranty
Covers defects in materials and workmanship across all axles, leaf springs, suspension kits, and additional components.
Competitive Pricing
Custom pricing and value-add programs ensure cost-effective solutions without compromising quality.
Flexible Configurations
Assembled to Order – Duraride Axle Systems include various components options for capacity, hub configurations, brake systems, and wheel-ends.
Proven Durability
All components undergo load testing, brake validation, and operational verification to ensure long-term reliability under heavy loads and harsh conditions.
Complete the Trailer Build
Duraride provides both individual components and fully assembled systems, supporting OEM and distributor needs. Each product integrates seamlessly into trailer applications, ensuring uptime, safety, and consistent performance.
Contact our team

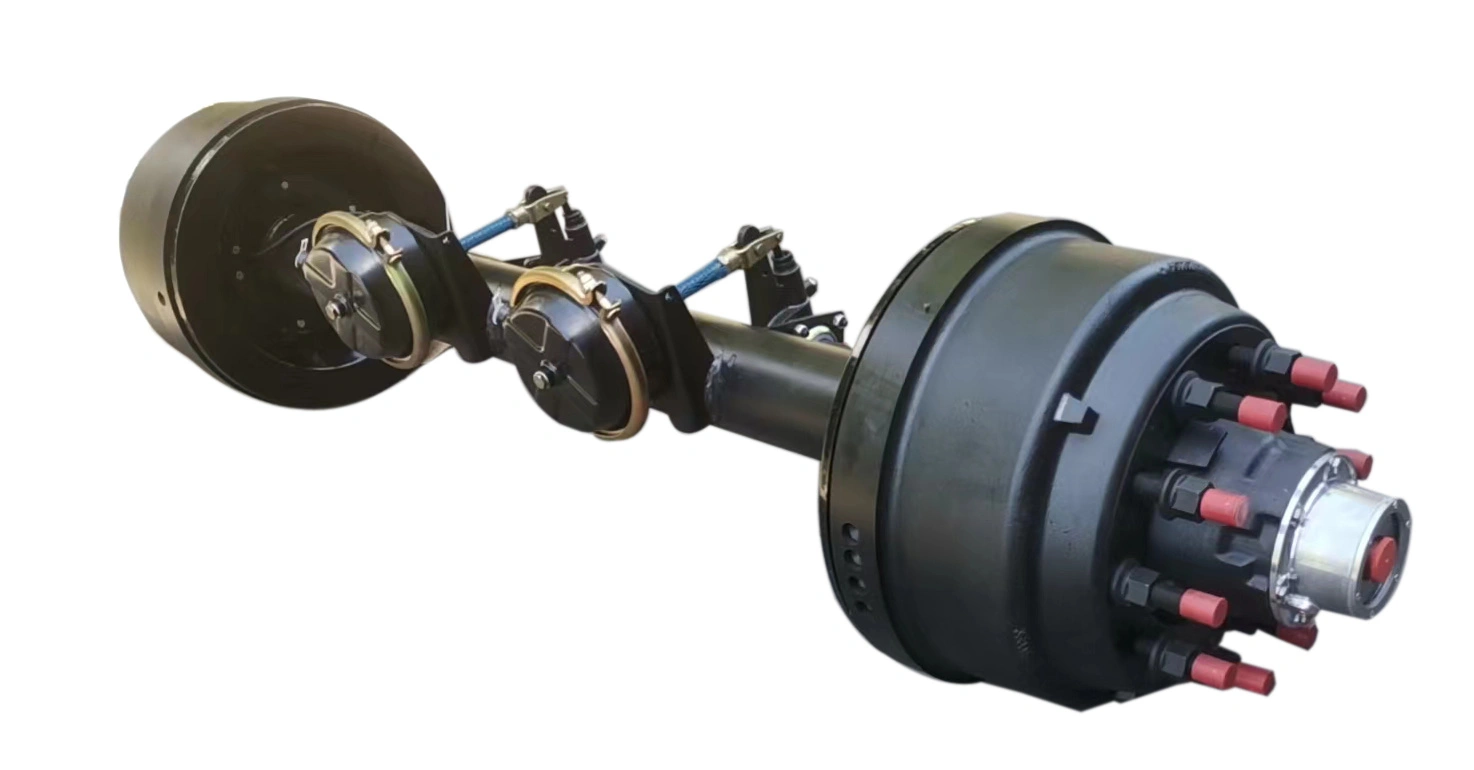

Assembled Axle
- 71.5″ & 77.5″ track
- 22.5K–30K lbs
- Hub Pilot & Stud Pilot
- ½” / ⅝” / ¾” wall
- Single / Dual wheel
- Brake Chambers: Type 30 Service or Type 3030 Spring

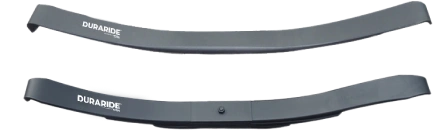

Leaf Springs
- Single and multi-leaf options
- OEM-compliant designs

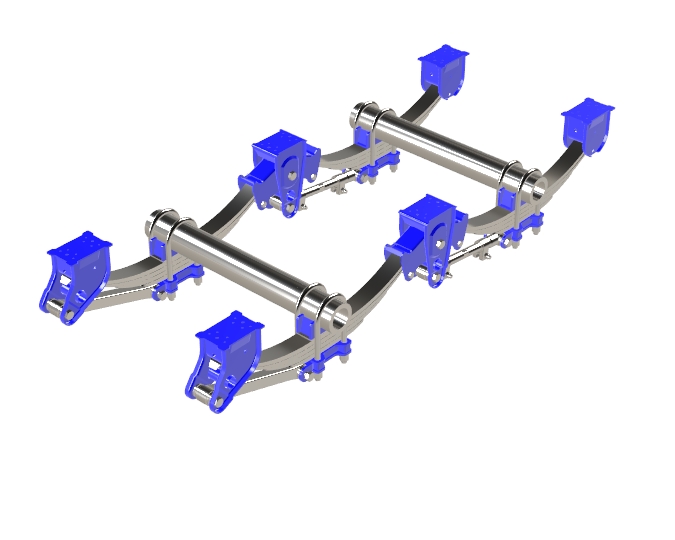

Suspension Kits
- Single-axle
- Tandem-axle
- Kitted to order, various ride-heights

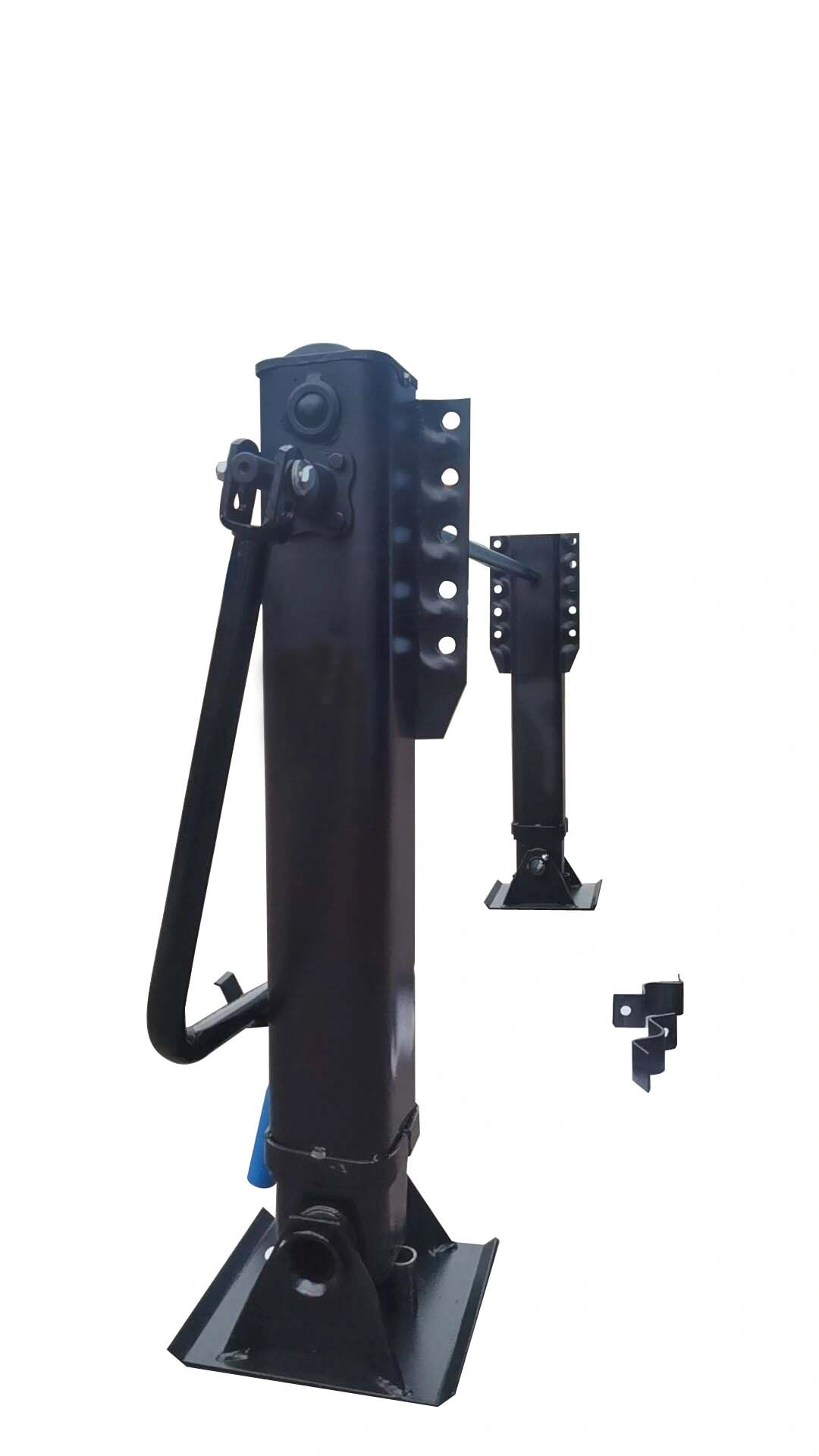

Landing Gear
- 4-hole or 5-hole mounting
- Swivel or fixed shoe
- Adjustable heights to match trailer designs

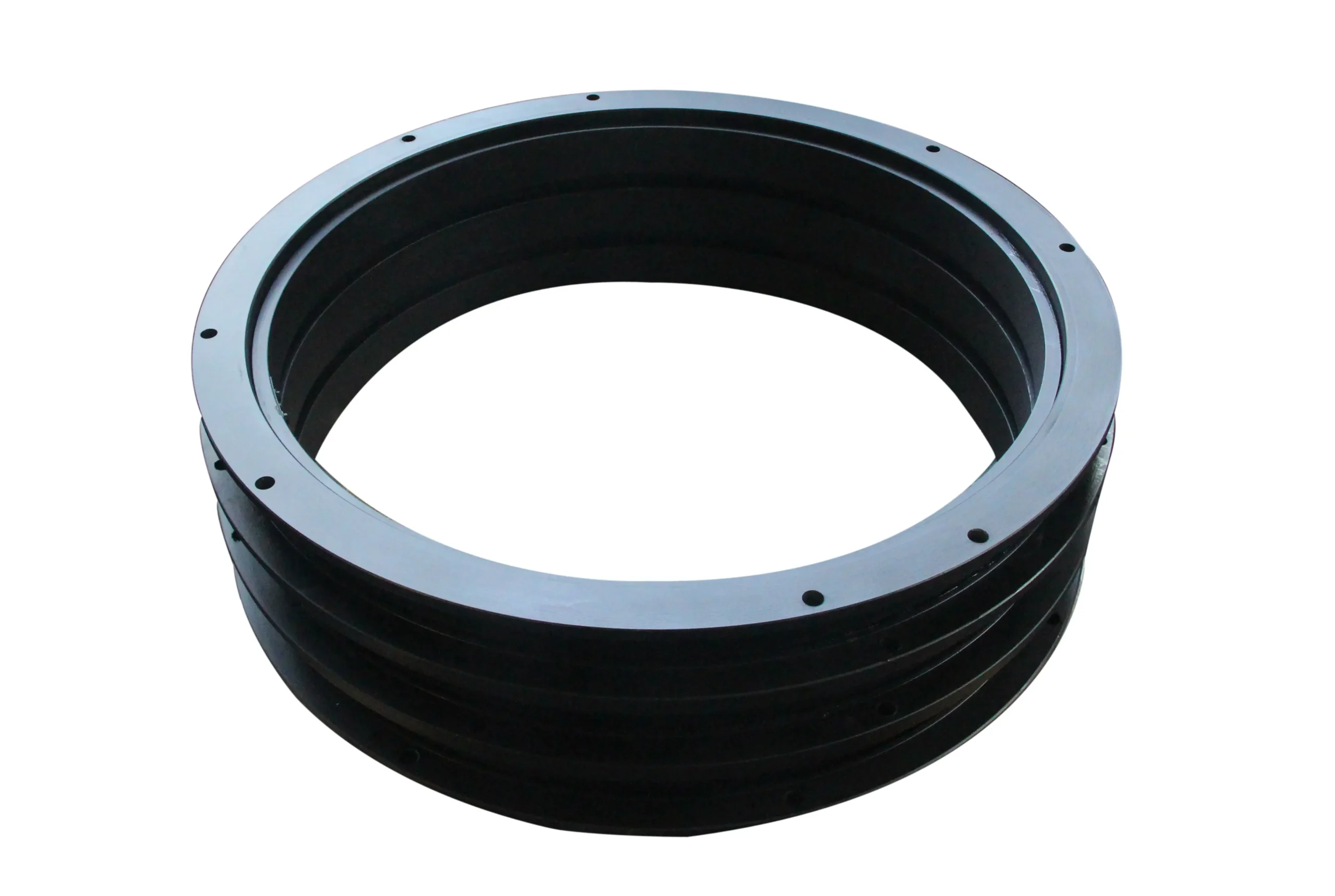

Turntable
- Diameter 39″ and 42″
- Double row ball bearings

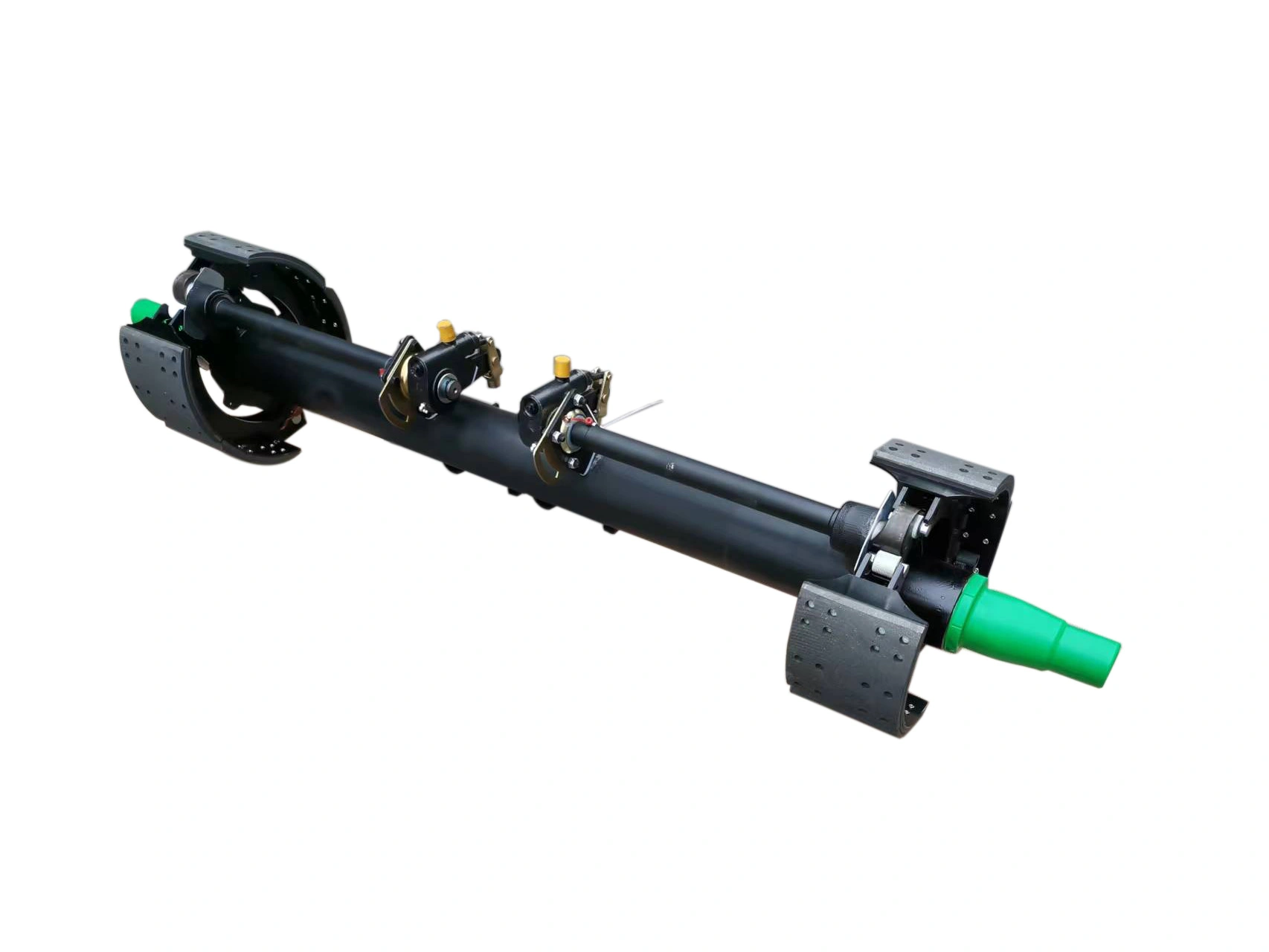

Beam and Brake
- 71.5” & 77.5” track
- 22.5K-30K capacity
Tire/Wheel Assemblies
- Single and dual configurations
- Aluminum or steel options

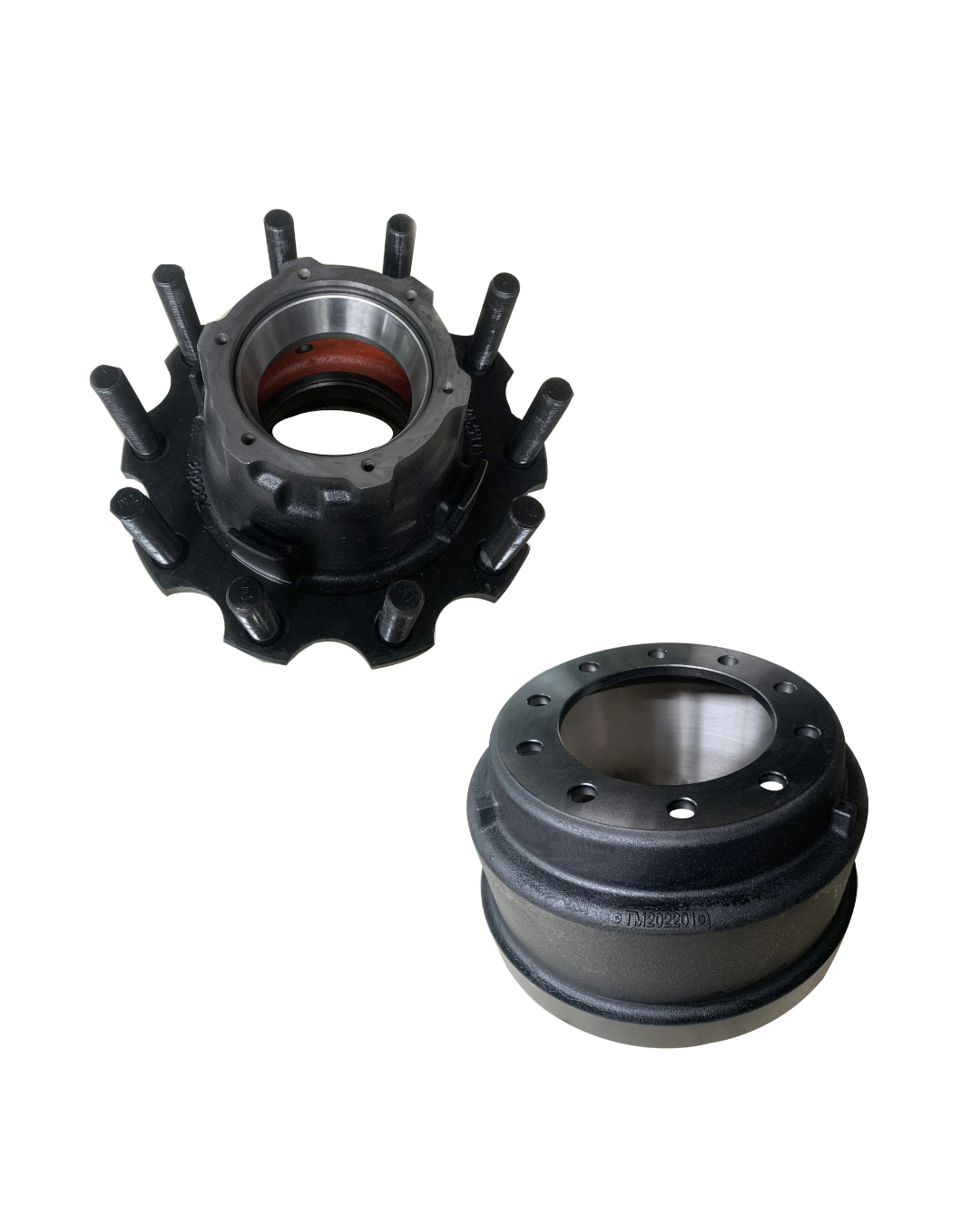

Hubs & Dums
- 10-hole Hub Pilot or Stud Pilot
- Cast or steel drums
- Supports single and dual wheel assemblies
Compliance & Validation
Tested for Performance and Safety
DOT-Compliant Axles and Components
All Duraride components are tested and approved for load capacity
Load & Durability Validation
Each component is tested for rated capacities, including extreme loads and multi-wheel configurations.
OEM Specification Alignment
All products are engineered to match OEM equipment requirements and regulatory expectations.
What is Duraride Axle Systems?
Duraride Axle Systems is a leading provider of heavy-duty trailer undercarriage components, including axles, suspension kits, leaf springs, landing gear, tires, wheels, and hubs. All products are engineered and assembled in the USA to meet OEM specifications, designed for reliability, performance, and long service life.
What trailer products does Duraride offer?
Duraride offers a complete line of trailer components: heavy-duty axles (22.5K–30K lbs), leaf springs, suspension kits, landing gear, axle beams and brakes, tires and wheels, and hubs/drums. Mixed product shipments are available to reduce inventory on-hand and support flexible assembly needs.
Where is Duraride located?
Duraride designs, engineers, and assembles all products in the USA, with headquarters in Northern California. Products are supported by domestic warehousing and flexible logistics programs to meet regional OEM and distributor requirements.
What type of fulfillment programs does Duraride offer?
Duraride provides flexible fulfillment including US-based warehousing for rapid lead times and reduced order quantities, mixed container-direct programs for larger volume customers, and tailored stocking solutions to support OEM production schedules and just-in-time delivery.
What axles does Duraride offer?
Duraride supports heavy-duty trailer axles ranging from 22.5K to 30K lbs capacity. Custom axle options include 71.5” and 77.5” track widths, various wall thicknesses, hub pilot or stud pilot configurations, and support for single or dual wheel positions.
What is the Duraride warranty policy?
Duraride provides an industry-leading warranty covering defects in materials and workmanship for all axles, suspension kits, leaf springs, and other components. Warranty claims can be submitted via the online form or PDF, with support from WSD Wheel Systems.
How do I place a custom order with Duraride?
Duraride allows OEMs and distributors to submit quote requests for custom axle, suspension, or component orders using online or PDF specification forms. Quote requests are processed within 24–72 hours, and Duraride engineers can provide technical guidance to ensure proper fit and performance.
Can Duraride components be installed on existing trailers?
Yes. Duraride components are designed to OEM specifications and can be retrofitted on compatible trailer frames. Engineering support is available to verify fitment and assembly requirements.
How does Duraride ensure quality and reliability?
Duraride follows strict US-based engineering and assembly standards, including material validation, load testing, and quality inspections. All products are tested to meet or exceed OEM performance specifications before shipment.
Let's Work Together
A Duraride sales specialist will reach out to understand your trailer equipment needs and business goals.
